Brand Name : BOTO
Model Number : BT-S-250
Certification : CE ISO
Place of Origin : China
MOQ : 1set
Payment Terms : L/C, T/T
Supply Ability : 170 Set/Sets per Month
Delivery Time : 5-25 days
Packaging Details : wooden case
Internal dimensions (mm) : 640*1000*500
Overall dimensions (mm) : 810*1800*1180
Temperature range : Ambient ~60℃
Humidity range : 95% ~ 98% RH
Temperature fluctuations : +/- 0.5 ℃
Temperature deviation : +/- 2.0 ℃
Test time : 1~999 hours, settable
Spray deposition : 1~2ml / 80cm2 · h
Spray type : Continuous / Periodic
Interior /Exterior material : Glass fiber reinforced plastics
Power Supply : AC 220V 50HZ
Test standard : ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227

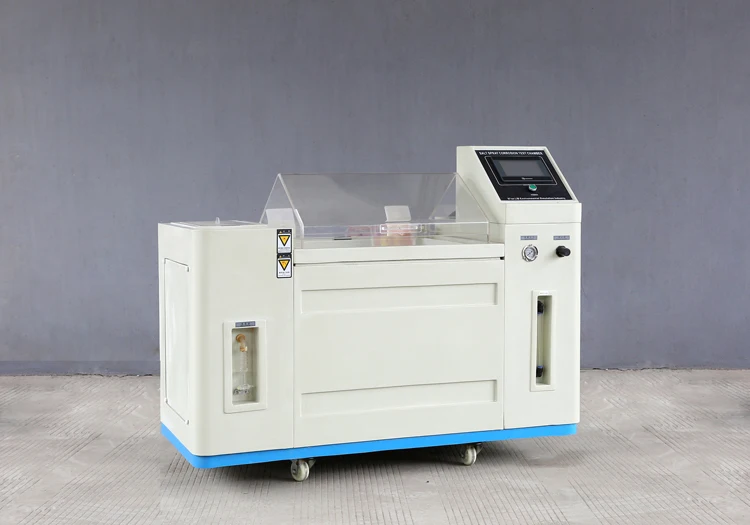

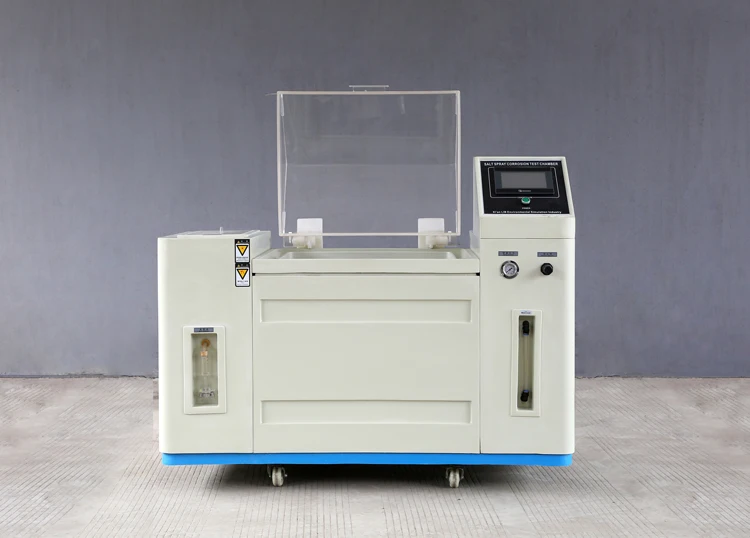

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
● Heater strip housed in base of chamber, effectively & evenly heating, Easy to exchange.
● Brine in high uniformity, not easy to caking, not blocking atomizer system
● Quartz nozzle, high temperature resistant, no blocking, easy to clean.
Specifications of Salt Spray Environment Test Chamber
Details of Salt Spray Environment Test Chamber

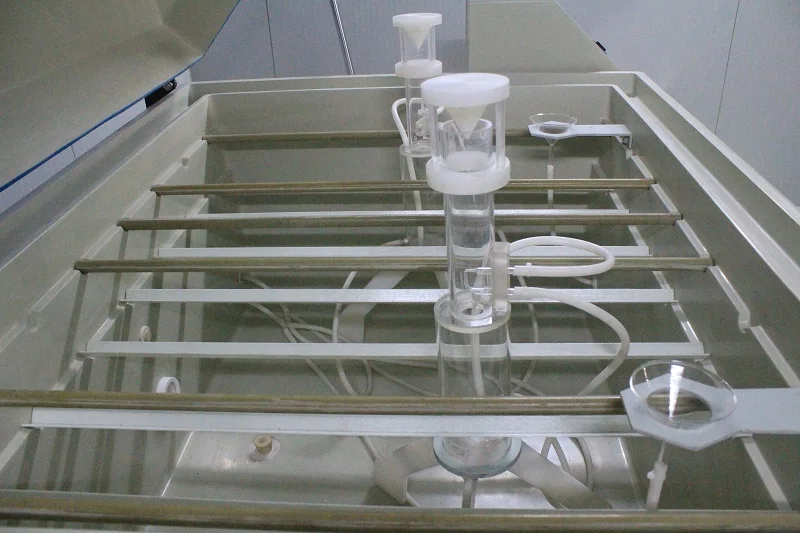

Test Area
● Glass Fiber Reinforced Plastics, strong corrosion resistance, long service lifespan, strong plasticity.
● Quartz nozzle, high temperature resistant, no blocking, easy to clean.
● Sample Holder, round bar+ V shape groove,It also can be customized.

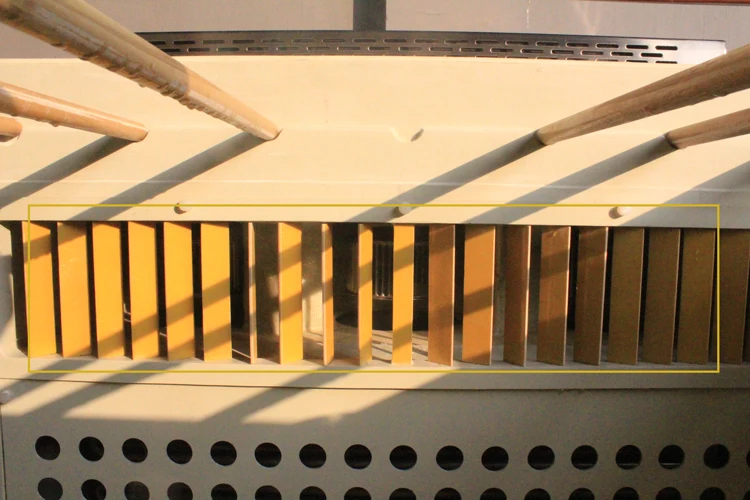

● Air circulation, circulation system for air cycling, easy to maintain humidity.
● Heater strip housed in base of chamber, effectively & evenly heating.Control Panel
● Equip with PLC touch screen controller, can set programs directly on controller.
● Multi-language, English, Polish language, Turkish, Portuguese, Spanish,French, Russia, Chinese.
● With Ethernet interface, able to download testing data to PC, More function performed, combined climate and salt spray into one chamber.
● USB, RS-232, APP.
● Semi-Automatic PET Bottle Blowing Machine Bottle
● Making Machine Bottle Moulding Machine, automizer Tower and Spraying
● Corrosion-resistant atomizer tower.
