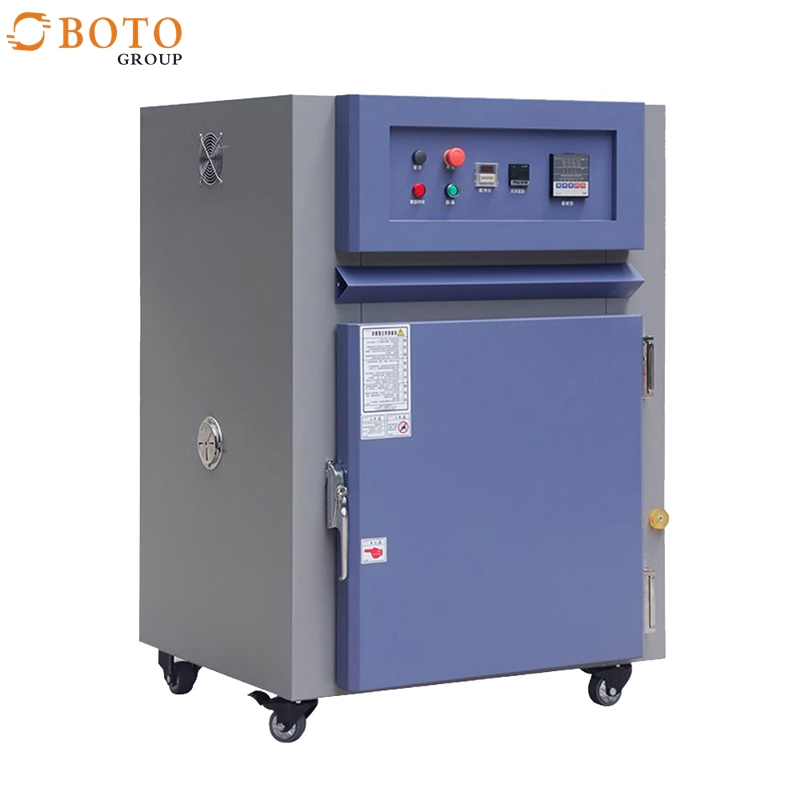

High Temperature Chamber Laboratory Equipment GB/T2423.2 Environmental Test Chamber
High temperature test chamber is the necessary test equipment in aviation, automobile, household appliances, scientific research and other fields, used to test and determine the parameters and performance of electrical, electronic and other products and materials after high temperature or constant test temperature environment changes.
product feature:
High temperature test chamber is one of the simulation of climate environment test equipment, suitable for various products or materials under high temperature conditions performance test. It can be used in the laboratory of scientific research units, product quality control centers and industrial and mining enterprises. Digital display temperature control, PID self-regulation, and has the function of overtemperature protection.
This product is suitable for testing according to the national standard GB/T2423.2 "Environmental Test of Electrical and electronic products Test B: High temperature test Method". Meet GB/T2423.2 test method standard requirements.
It has the following performance characteristics:
■ The shell is made of high-quality thin steel plate, the surface is sprayed with plastic;
■The liner is stainless steel sheet;
■Fujifilm temperature controller;
■Wide temperature test range;
■ Pt100 platinum resistance as sensor;
■ High temperature control sensitivity, good temperature uniformity;
■ With leakage protection, overtemperature alarm, overtemperature protection function.
product description:
| | model | B-RUL-45 | B-RUL--60 | B-RUL-80 | B-RUL-100 |
| design dimension | 45x45x45 | 60x60x60 | 80x80x80 | 100x100x100 |
| carton size | 103x123x77 | 118x138x92 | 138x158x112 | 158x178x132 |
| | RT+10℃-200℃(1300°℃) |
| economy | model | DHG-9030A
101A-0S | DHG-9070A
101A-1S | DHG-9140A
101A-2S | DHG-9240A
101A-3S | DHG-9420A
101A-4S | DHG-9620A |
| volume | 30L | 70L | 136L | 220L | 420L | 620L |
| Interior dimension | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 | 640*585*1355 | 840*600*1355 |
| mmW*D*H carton size | 480*470*685 | 580*470*785 | 680*590*885 | 730*640*1085 | 780*750*1880 | 980*800*1880 |
| temperature fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| temperature resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| temperature control range | RT+10-250℃ | RT+10-250℃ | RT+10-250℃ | RT+10-250℃ | RT+10-200℃ | RT+10-200℃ |
| mains input | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| input powe | 650W | 1500W | 2000W | 2400W | 4000W | 4800W |
| volume | 30L | 70L | 136L | 220L | 420L | 620L |

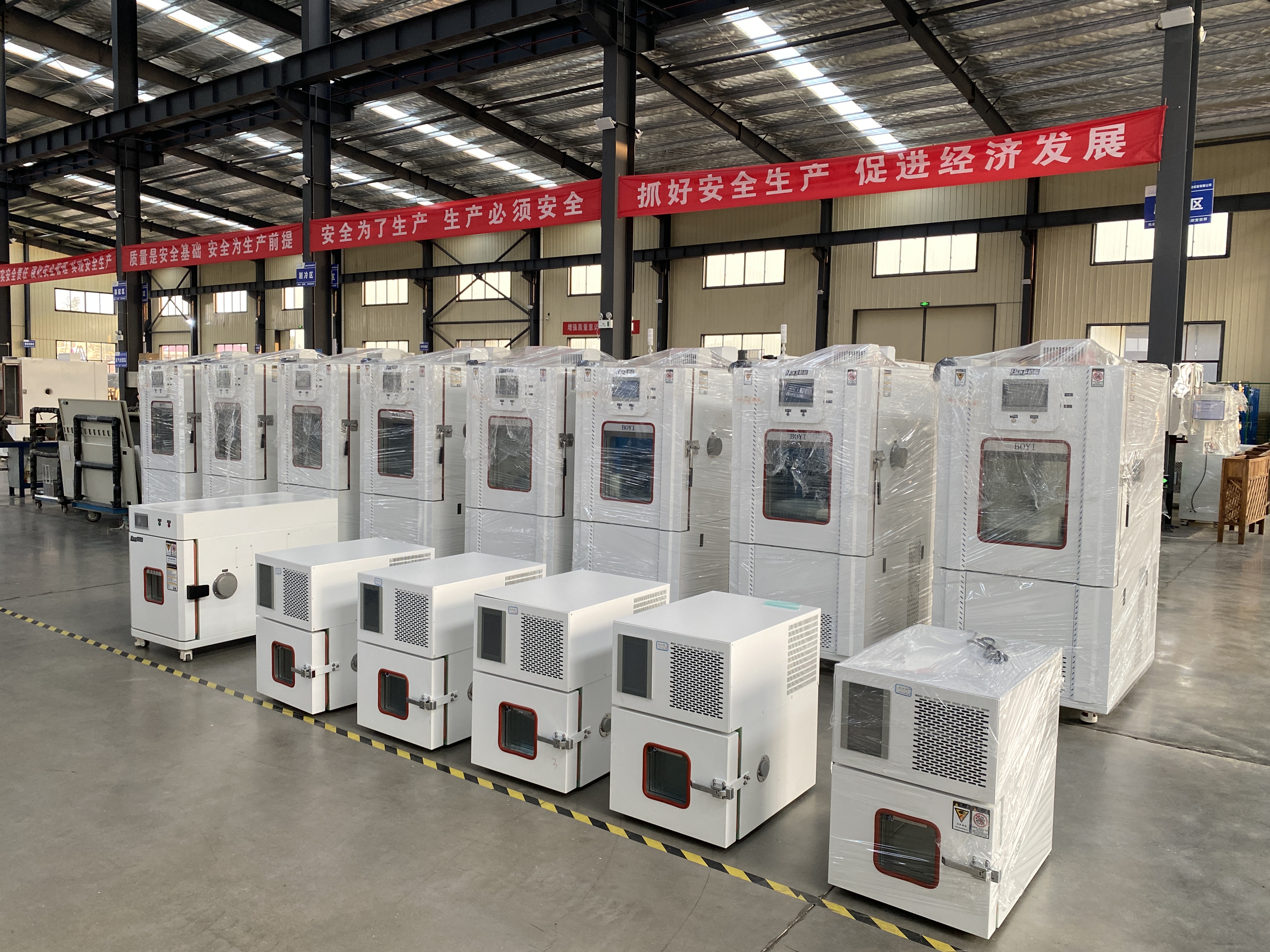

Our Company:
Packing/Shipping:
Our Services
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
